Network topology explained: Key concepts and importance

In today’s connected world, understanding how our digital systems link together is crucial. Network topology, which maps out these connections, plays a key role in the flow of data. But why should you care about network topology?

To illustrate, think about navigating a city without a map. You’d struggle to find your way. Similarly, network topologies provide a clear path for data, ensuring it moves efficiently. Whether you manage a small office network or a large enterprise system, the way you structure your network directly impacts its performance, security, and ability to grow.

In this blog, we’ll first explain what network topology is. Next, we’ll explore its various types of network topologies. Finally, we’ll show you how to implement network topologies in your organization. By understanding network topology, you can boost network speed, enhance IT asset security, and make the most of your IT environment.

Let’s dive in and discover why the layout of your network matters more than you might think.

Node: A node is any device or point in a network, such as computers, servers, routers, or switches. These nodes play a crucial role in transmitting and receiving data within the network.
Link: A link signifies a physical or logical connection between two nodes, allowing data to flow between them. For example, links can be either wired, using Ethernet cables, or wireless, utilizing Wi-Fi.
Topology: Topology describes the arrangement or layout of nodes and links in a network. In addition, it determines how devices interconnect and how data travels within the network. Consequently, the network topologies significantly impact network performance and efficiency.

What is network topology?

Network topology refers to the layout and structure of how computers, devices, or nodes connect and interact within a network. In addition, it determines how data flows between these nodes. The term “topology” comes from Greek words:

Topo = Place
Logy = Study

In simple terms, network topology is the map or design of a network, showing how different nodes communicate and share information with each other. Understanding network topology is essential for managing and optimizing network performance.

Why is network topology important?

Understanding different types of network topologies is crucial because it impacts:

Performance: Efficient data flow reduces congestion and latency, ensuring smooth and fast transmission.
Scalability: Additionally, it allows for the easy addition of new devices without disrupting the existing network.
Reliability: Moreover, it provides redundancy and reduces downtime by offering alternative data paths if one link fails.
Maintenance: Furthermore, it simplifies troubleshooting and upgrades by providing a clear and logical network structure.
Cost: Consequently, it balances performance needs with budget constraints by influencing the amount of required cabling and hardware.
Security: Finally, it enhances security by allowing network segmentation to limit the spread of potential breaches.

Choosing the right network topology ensures an efficient, reliable, and secure network.

Types of network topology

There are several types of network topologies, each defining how devices are interconnected. Here are the main types:

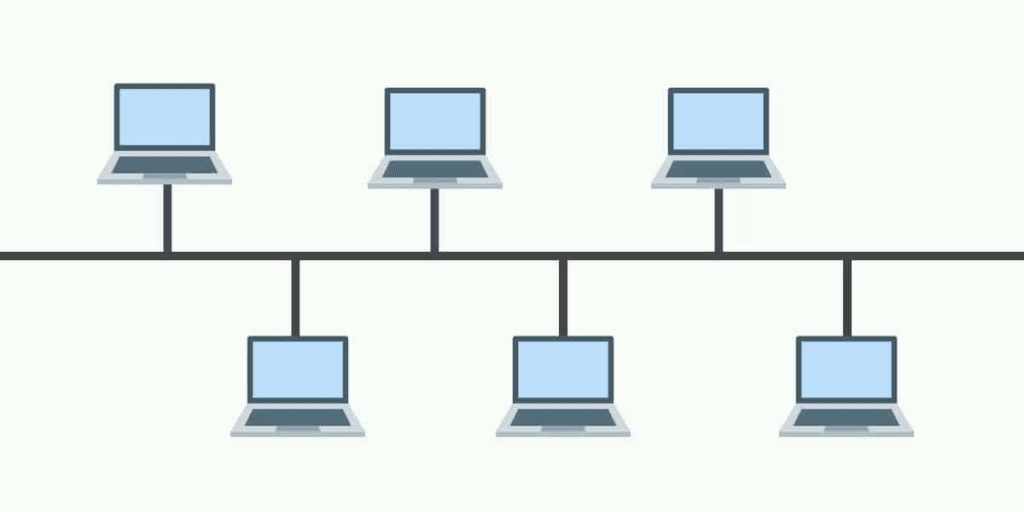

Bus topology

In a bus network topology, all devices are connected to a single central cable called the bus.
Next, devices communicate directly with each other through the bus.
It is simple and inexpensive to implement. However, it can be prone to congestion and difficult to troubleshoot if the main cable fails.

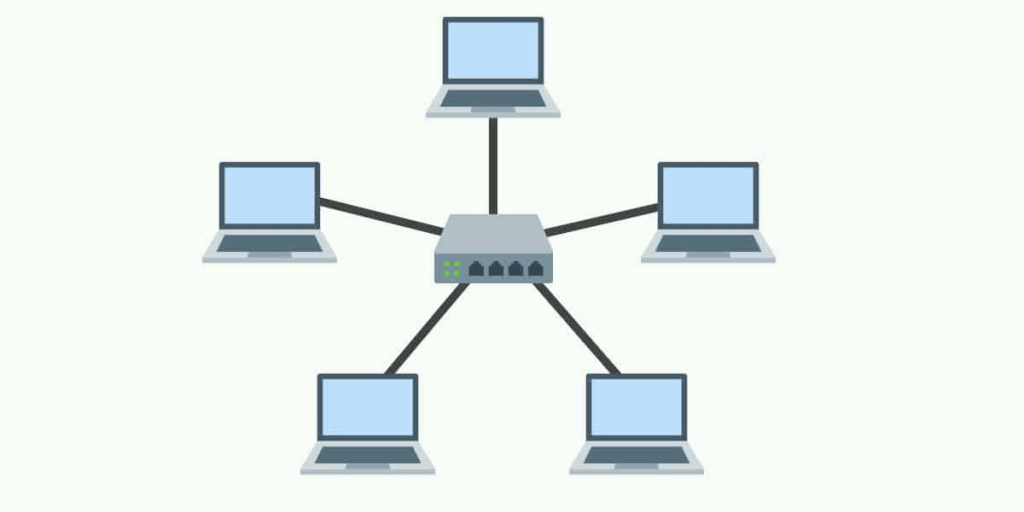

Star topology

In a star network topology, each device connects to a central hub or switch.
Next, all data flows through the central hub, which manages and directs traffic.
This network topology offers better performance and easier troubleshooting compared to bus topology; nevertheless, it relies heavily on the central hub.

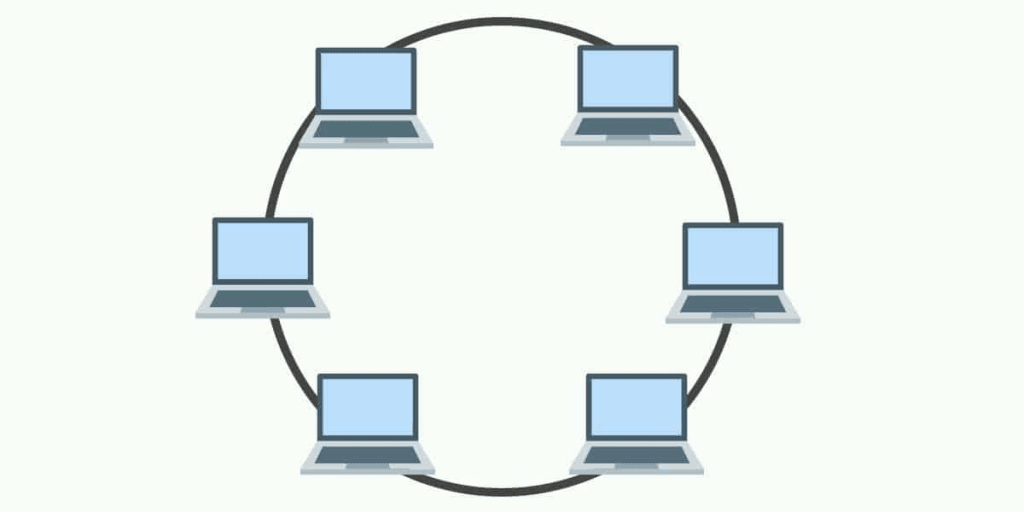

Ring topology

In a ring network topology, each device connects to exactly two other devices, forming a closed loop or ring.
Then, data travels in one direction around the ring until it reaches its destination.
It provides better performance than bus network topology. However, it can be challenging to troubleshoot if one device or connection fails.

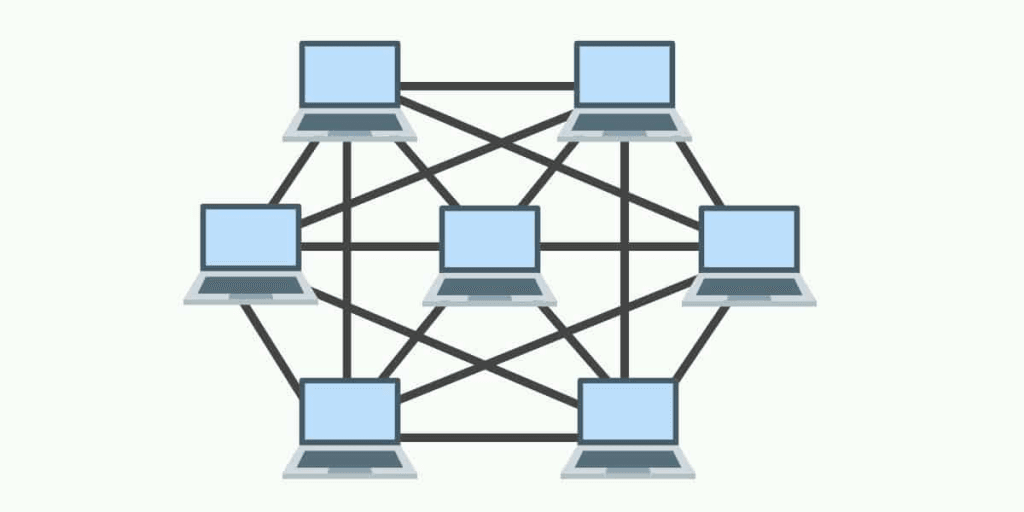

Mesh topology

In a mesh network topology, every device is connected to every other device in the network.
Later, this redundancy provides multiple paths for data to travel, enhancing reliability and fault tolerance.
Despite being complex and costly to implement, it offers the highest level of redundancy and performance.

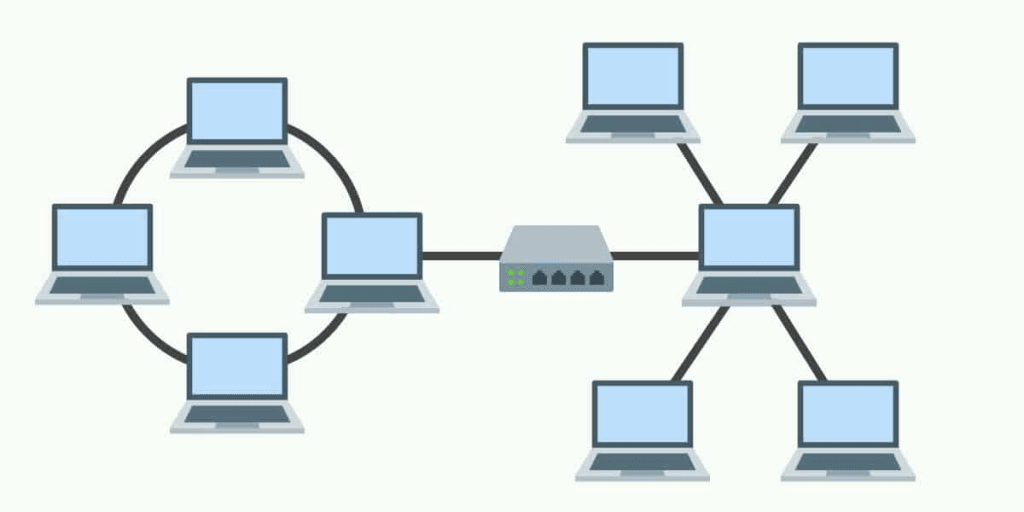

Hybrid topology

A hybrid network topology is a combination of two or more different types of topologies.
For example, a network might combine star and mesh network topologies to leverage the strengths of each.
This approach allows for customization to meet specific needs, balancing cost, performance, and reliability.

Factors to consider while choosing the network topology

Not all network topologies are perfect. Each has its advantages and disadvantages. Therefore, choosing network structures largely depends on your organization’s unique business goals, needs, and network size. Always select the network topology that can benefit your organization the most. Consider the following points before making your choice.

1. Cable type

Choose the appropriate cable type based on factors such as bandwidth requirements, distance limitations, and environmental conditions. Common types include:

Twisted Pair (e.g., Cat 5e, Cat 6): Suitable for short to medium distances, commonly used in Ethernet networks.
Fiber Optic: Ideal for long distances and high-bandwidth applications, immune to electromagnetic interference as well.
Coaxial: Lastly, used in television and networking applications, suitable for moderate distances.

2. Cable length

Ensure cables are within their specified maximum length to maintain signal integrity and performance. Moreover, factors influencing cable length include signal attenuation, data transmission rate, and network topology.

3. Scalability

Evaluate how well the network topologies can grow with your organization. For instance, some topologies, such as mesh or hybrid types, offer better scalability than others.

4. Reliability

Assess the network topology’s ability to maintain network uptime and minimize disruptions due to IT downtime. Network topologies with redundancy, such as ring or mesh, can enhance reliability.

5. Cost

Analyze the initial setup costs and ongoing maintenance expenses associated with network topologies. Topologies such as star or bus may be more cost-effective than mesh or hybrid setups.

6. Security

Consider the inherent security features of the network topologies. Some network layouts, such as ring or mesh, offer built-in redundancy that can enhance security by reducing single points of failure.

Moreover, by carefully considering these factors based on your organization’s specific needs and goals, you can make an informed decision on which network topology type best suits your requirements.

How do you implement network topologies in your organization

Implementing network topology in an organization involves several steps to ensure the network is structured efficiently. Here’s a step-by-step guide:

1. Assess requirements and constraints

Understand the organization’s requirements for network connectivity, performance, security, and scalability.
Consider physical constraints such as building layouts, distances between locations, and existing infrastructure.

2. Choose the right network topology

Select a network layout that best fits the organization’s needs (e.g., bus, star, ring, mesh, hybrid).
Next, evaluate pros and cons of each topology in relation to cost, scalability, ease of maintenance, and performance.

3. Design the logical network

Create a logical diagram of how devices will connect and communicate within the network.
Then, define IP addressing schemes, subnetting, VLANs (Virtual LANs), and routing protocols if applicable.

4. Plan physical layout

Map out the physical placement of networking equipment such as routers, switches, and access points.
Consider factors like cable lengths, cable types (fiber optic, Ethernet), and power requirements.

5. Select networking equipment

Choose appropriate hardware based on the selected network topologies and requirements.
Then, ensure compatibility between devices and consider future expansion needs.

6. Implement network devices

Install and configure routers, switches, firewalls, and other network devices according to the design.
Next, configure IP addresses, VLANs, routing protocols (if using), and security settings.

7. Test the network

Conduct thorough testing to ensure connectivity, performance, and security.
Furthermore, test for potential issues such as network congestion, latency, and data loss.

8. Document the network

Maintain detailed documentation of the implemented network topology.
Next, document configurations, IP allocations, VLAN assignments, and any special configurations.

9. Training and transition

Train IT staff and end-users on the new network layout and any changes in procedures.
Then, plan and execute a smooth transition from the old network to the new topology.

10. Monitor and maintain

Implement monitoring tools to continuously monitor network performance and security.
Later, establish regular maintenance schedules for updates, patches, and hardware upgrades.

11. Review and optimize

Periodically review the network topology for efficiency, scalability, and alignment with organizational goals.
Finally, optimize configurations based on performance metrics and user feedback.

Discover the best software to map your network

Unlike the traditional method to build network topologies in your organization, you can also use automated software. In brief, if you are looking for any software to map networks, you are in the perfect spot. Here are some of the popular ones:

1. Virima

Virima is a leading provider of IT asset management and IT service management (ITAM and ITSM tools). With its advanced mapping, you gain clear visibility into network connections and dependencies.

Features: Automated asset discovery, visualization of network topology, dependency mapping, and asset management.
Benefits: Helps in maintaining a nearly accurate inventory, understanding network dependencies, and improving incident response and change management software processes.

2. SolarWinds Network Topology Mapper

SolarWinds Network Topology Mapper is a powerful software that maps network layouts, offering automated discovery and visualization of network topology. It provides detailed insights into network structures, enhancing management and troubleshooting efficiency.

Features: Automated network discovery, topology mapping, detailed network diagrams, and export options as well.
Benefits: Easy to use with a drag-and-drop interface, supports various network devices, and helps in identifying and resolving network issues quickly.

3. Microsoft Visio

Microsoft Visio is a powerful diagramming tool used to create detailed network topology diagrams, making it an essential software for efficiently mapping network structures. It offers a wide range of templates and shapes specifically designed for visualizing network components and their connections.

Features: Customizable templates, integration with Microsoft 365, and collaboration tools.
Benefits: Great for creating detailed network diagrams, highly customizable, and integrates well with other Microsoft tools.

4. Nagios XI

Nagios XI is comprehensive monitoring software that maps network devices and services, ensuring real-time IT visibility into network topology. Moreover, it helps administrators swiftly identify and resolve issues within their infrastructure.

Features: Network monitoring, performance tracking, automated alerting, and customizable dashboards.
Benefits: Comprehensive monitoring capabilities, highly customizable, and provides detailed reports and alerts.

5. Paessler PRTG Network Monitor

Paessler PRTG Network Monitor is a robust software to map network topologies, enabling administrators to visualize their entire network infrastructure seamlessly. It actively scans and presents real-time data, ensuring comprehensive oversight and efficient network management.

Features: Network monitoring, mapping, and alerting, customizable dashboards, and detailed reporting.
Benefits: Easy to set up, user-friendly interface, and provides real-time network status and performance data.

Each of these tools has its own unique advantages, and the best choice depends on your specific needs, such as the size and complexity of your network, budget, and the level of detail required in your network maps.

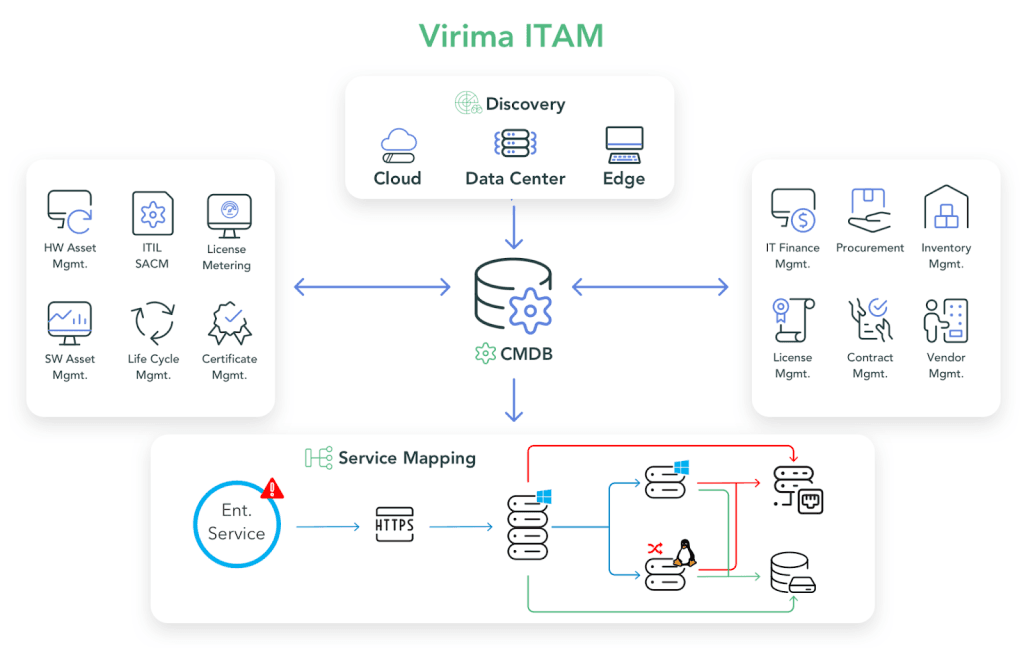

Challenges in implementing network topologies: Introducing Virima as a solution

Implementing network topologies poses several challenges across various facets of IT infrastructure. Virima’s advanced capabilities in network discovery and automated mapping empower organizations to swiftly implement and maintain accurate network layout. Consequently, Virima helps to achieve robust visibility and operational efficiency during the process. Let’s dive in deep into the IT operations challenges related to network structure.

Complexity of hybrid topologies

Challenge: Hybrid topologies integrate diverse network structures, complicating their management.
Virima solution: Virima employs agentless discovery and CMDB to offer a unified perspective of the entire network, thereby streamlining management of hybrid setups.

Cost and infrastructure requirements

Challenge: Additionally, certain topologies require substantial investments in cabling and network equipment.
Virima solution: To address this, Virima’s IT discovery and CMDB optimize network infrastructure by identifying inefficiencies and suggesting cost-effective improvements.

Scalability and expansion

Challenge: Scaling certain topologies with network growth can lead to traffic issues and bottlenecks.
Virima solution: Through Virima’s asset discovery tool and service mapping, organizations gain insights into network capacity and highlight areas needing upgrades, ensuring scalability.

Security and data protection

Challenge: Ensuring data transmission and network access is critical, particularly in specific structures and layouts.
Virima solution: By leveraging Virima’s CMDB and service mapping, organizations can implement security measures, segment networks, and enhance access controls.

Management and maintenance

Challenge: Managing complex networks demands significant time and skilled personnel.
Virima solution: Furthermore, Virima’s discovery, CMDB, and service mapping automate tasks, reducing IT workload and facilitating issue resolution through detailed reports.

By utilizing Virima’s agentless discovery, CMDB, service mapping, and application dependency mapping, organizations effectively tackle challenges in network layout implementation, ensuring efficient, secure, and scalable networks.

Map your network with near real-time topology maps using Virima

Network topology mapping helps IT teams understand their network’s structure, making it easier to troubleshoot, diagnose issues, and optimize performance and security. With advancements in IT discovery and service mapping, network visualization tools have become more powerful, allowing IT teams to quickly spot issues and create effective solutions. By using data from network structures, IT teams can plan for efficient operations and reduce cyber risk.

Moreover, Virima’s IT Discovery feature gives asset managers a detailed view of their network, showing both on-premise and cloud resources. Through agentless IP-based network scanning and an optional Windows Discovery Agent, Virima integrates smoothly with its CMDB and leading ITSM platforms like ServiceNow and Ivanti Neurons. Furthermore, with over 100 probes and integrations with cloud providers such as AWS and Azure, Virima automatically detects thousands of assets.

In addition, the ViVID (Virima Visual Impact Display) Service Mapping tool lets asset managers map application dependencies, business services, and ITSM processes. This helps them visualize and optimize their IT infrastructure. It also shows how changes affect the network, ensuring stability and IT regulatory compliance. By using these tools, asset managers can lower operational costs and keep a constant watch on their network.

Do you want to map your network? Book a demo with Virima and see how it can help you map your IT infrastructure effectively.
